Project 04

Mountain Retreat

A small mountain retreat distributed as timber rooms along a restored terrace, with a communal hearth at its quiet center.

Location
Northern Vietnam
Year
2024
Area
1,180 m²
Status
Completed
Timber mountain retreat pavilions stepping across a misty planted terrace

The project

Following the contour

Mountain Retreat occupies a former cardamom plot on a steep, mist-prone slope in northern Vietnam. The commission called for twelve guest rooms and a common house, but the most important existing structure was the terraced ground. Years of cultivation had produced stone retaining walls, narrow paths, and channels that slowed rain across the hillside. Instead of clearing a platform for one large lodge, the project repairs this inherited section. Small buildings settle along two terraces, leaving the upper forest edge intact and returning exhausted portions of the plot to diverse mountain planting.

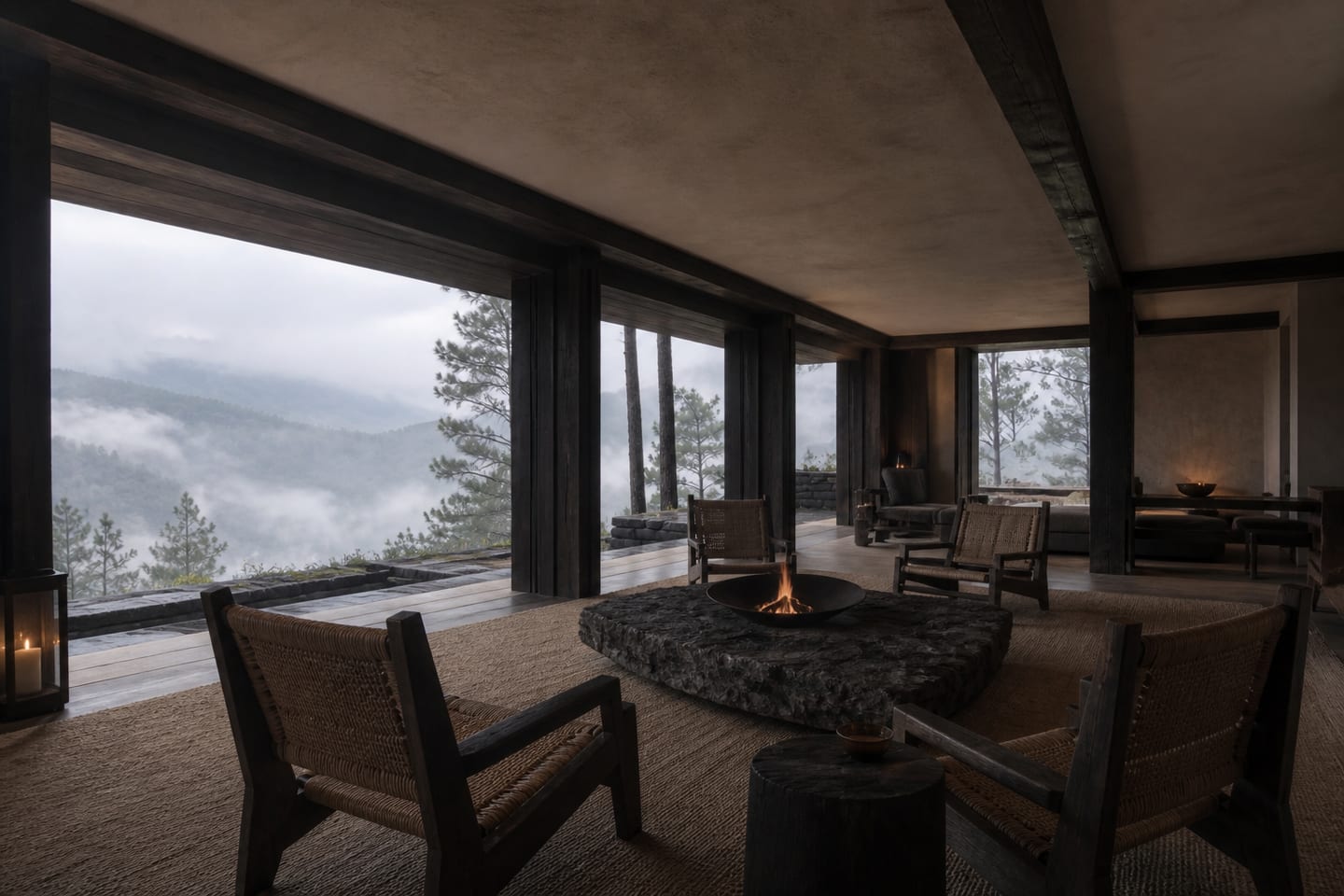

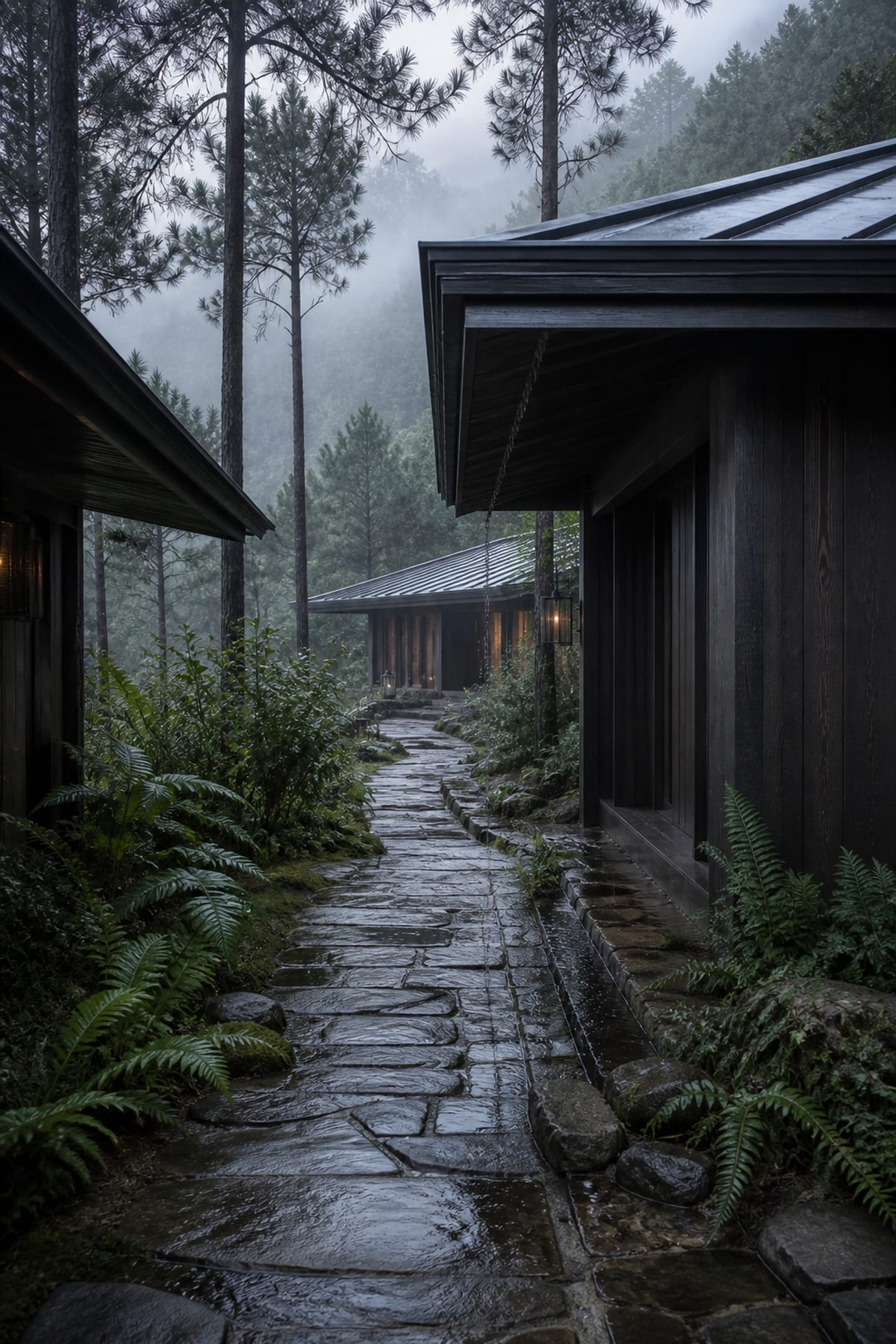

Arrival happens on foot from a shared drop-off below. A covered path follows the contour, passing a drying pavilion and spring-fed basin before reaching the common house. This long approach gives visitors time to register cooler air, damp earth, and the changing acoustic distance from the road. The common house is the only broad volume. Its roof folds down toward a central hearth and lifts at the valley edge, framing weather rather than a permanent postcard view. Dining, reading, and reception share one room that can contract around the fire on cold evenings or open along its full length in summer.

Guest rooms are paired in six narrow timber pavilions. Each pair steps with the terrace and shares a thick service wall, reducing excavation and concentrating plumbing. A sheltered entry court separates the rooms, while deep window seats make modest interiors feel generous. The beds face a layered foreground of grasses, tree trunks, and mist instead of exposed balconies. Cross-ventilation works through screened vents at floor and ridge level. Small wood stoves provide direct, repairable warmth during the coldest months; no central air-conditioning is installed.

The structural system combines stone, timber, and a limited amount of concrete where contact with the wet ground demands it. New retaining walls reuse stone recovered during site work. Locally managed cypress forms the primary frames, protected by generous eaves and charred only at the most exposed edges. Interior surfaces use lime, woven reed, wool, and oiled timber, selected with regional makers through a material research phase. Landscape work restores water channels and plants edible understory species among regenerating trees. The retreat offers hospitality through attention rather than excess: a dry threshold after rain, somewhere warm to sit, and architecture that makes the mountain's changing conditions easier to notice.

Architectural concept

Following the contour

Twelve rooms are paired in small pavilions along repaired agricultural terraces. A slow contour path and a shared hearth bind them together, preserving forest, water routes, and the felt distance of the mountain site.

Mountain Retreat conceptual plan and section diagramCONCEPT STUDY010 M
Code-native diagram · not for construction

Material register

  1. 01Reused site stone
  2. 02Locally managed cypress
  3. 03Charred timber cladding
  4. 04Hand-applied lime plaster
  5. 05Woven reed panels
  6. 06Regional wool textiles

Project information

Client
Independent hospitality operator
Architecture
ATELIER NOMA
Interior architecture
ATELIER NOMA
Landscape
Field Common
Material research
ATELIER NOMA with regional makers
Visualisation
ATELIER NOMA
